Features
+
GOD Reagent
+
0.5µl Blood Sample
+
Alternative Site Testing
+
Instant 14 Days Average
+
5 seconds Test
+
500 memory sets
+
PC Download
+
Auto Calibration
+
Strip Ejector
Bigger Buttons
in a compact device
Easy to use for elderly people

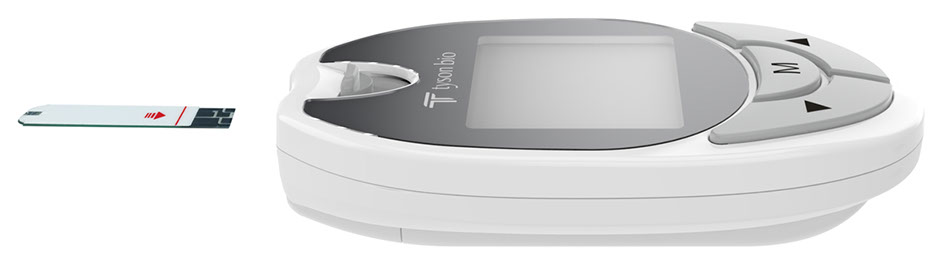

Test Strip Ejector
Reduce the possibility of
cross-contamination
due to bloodborne pathogens
Test Strip
Longer shelf life 24 months
USB and

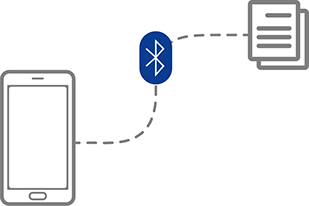

Bluetooth (optional) Provide both wire and wireless connection for data transmission
Auto coding
Simplified way of test, easy to use,
no more misreading due to
incompatible code card
GOD Enzyme
0.5µl blood sample
Accurate for Fresh Capillary Whole Blood samples
Simple Steps to Test

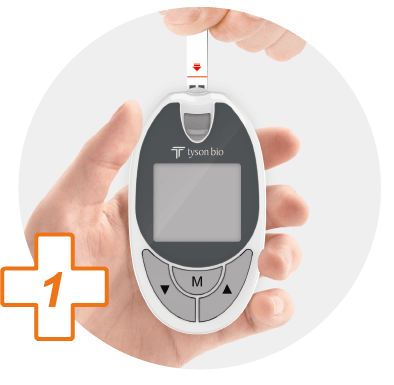

Insert a test strip

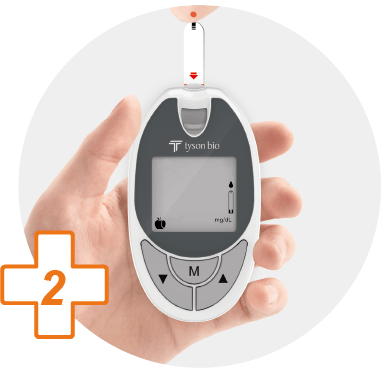

Apply blood sample

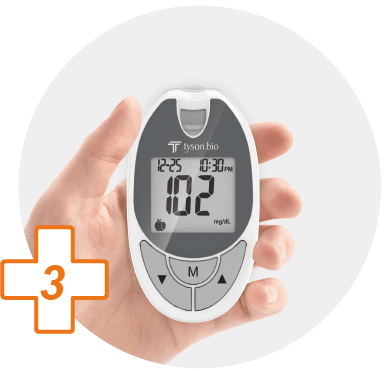

Result in 5 seconds
Complete Kit
Complete Kit

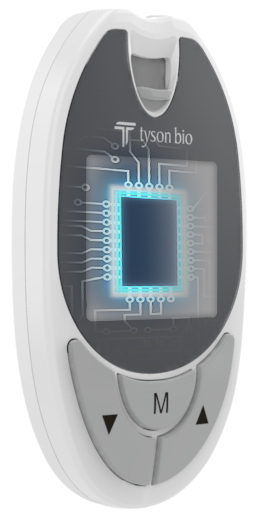

＋ AC500 Blood Glucose Meter
＋ AC500 Blood Glucose Test Strip
＋ Quality Control Solution
＋ Adjustable Depth Lancing Device
＋ Sterilized Lancets
＋ Comprehensive User Manual,
Quick Reference Guide,
Package Inserts, & Logbook
＋ Protective carrying case

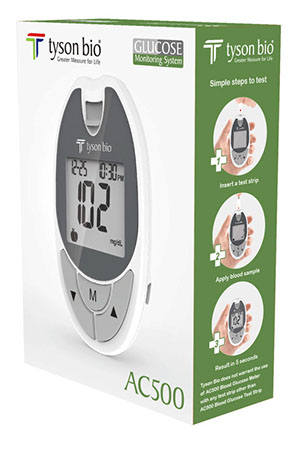

& product illustration box
Note:
The contents of a Complete Kit may vary and are subject to change according to the actual purchase.
Technical Specifications
Hematocrit
Test Sample
Measuring Unit
Measuring Range
Average
Reminder Alarm
EXternal Output
Power Supply
Battery Life
Dimensions
Weight
30 - 55%
Capillary Whole Blood
mg/dL or mmol/L
20 - 600mg/dL (1.1 - 33.3mmol/L)
7/14/30 days
4 sets
UART with mini USB socket (Optional)
Bluetooth (Optional)
2 AAA batteries
Approximately 1,000 tests
100(L) x 57(W) x 24(H) mm
58 g without batteries
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
