Bluetooth

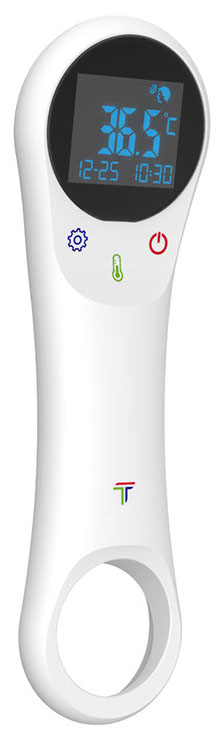

Non-Contact Infrared Thermometer
Accurate, reliable and contactless infrared thermometer giving instant forehead
temperature readings to guard your babies.
Features
+
Non-Contact Infrared
+
Simple Operation
+
Body and Object Modes
+
Switchable Unit
+
32 Memories
+
LCD Backlight
+
Ingress Protection 22
+
Bluetooth 4.0
+
Mobile APP
Ergonomic Design
Perfect fit in hand for convenient measurement. Large, color, and high contrast display for clear visuality. Touch-activated buttons for smooth and swift operation.
Reliable Technology
High-definition thermopile sensor and light-guided measuring distance assure accurate and reliable temperature readings.
High Usability
Quick toggle between body and object modes. Switchable units are available in Celsius and Fahrenheit. Forehead temperature readings recorded with time stamp.
Comprehensive APP
Graphical representations of forehead temperature to synchronize with continuous monitoring results from TP100 via Bluetooth 4.0.

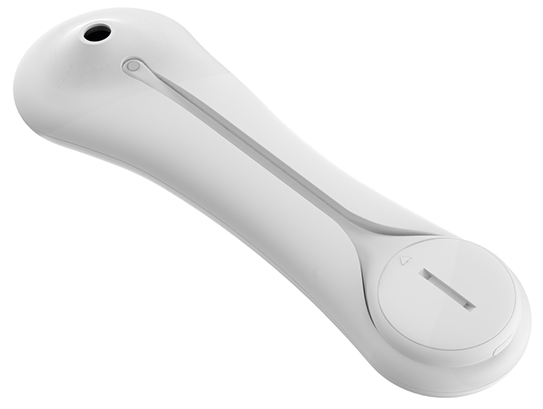

Ergonomic Design

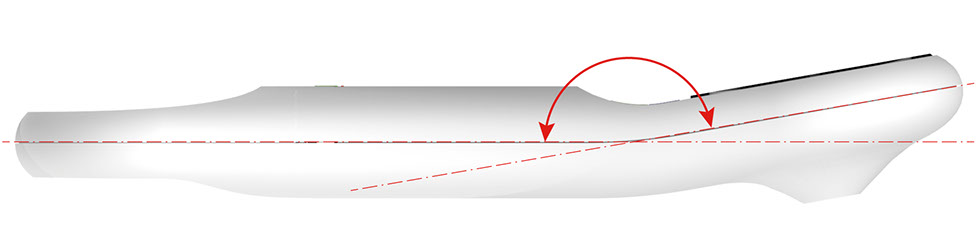

Comfortable Holding Angle
170°

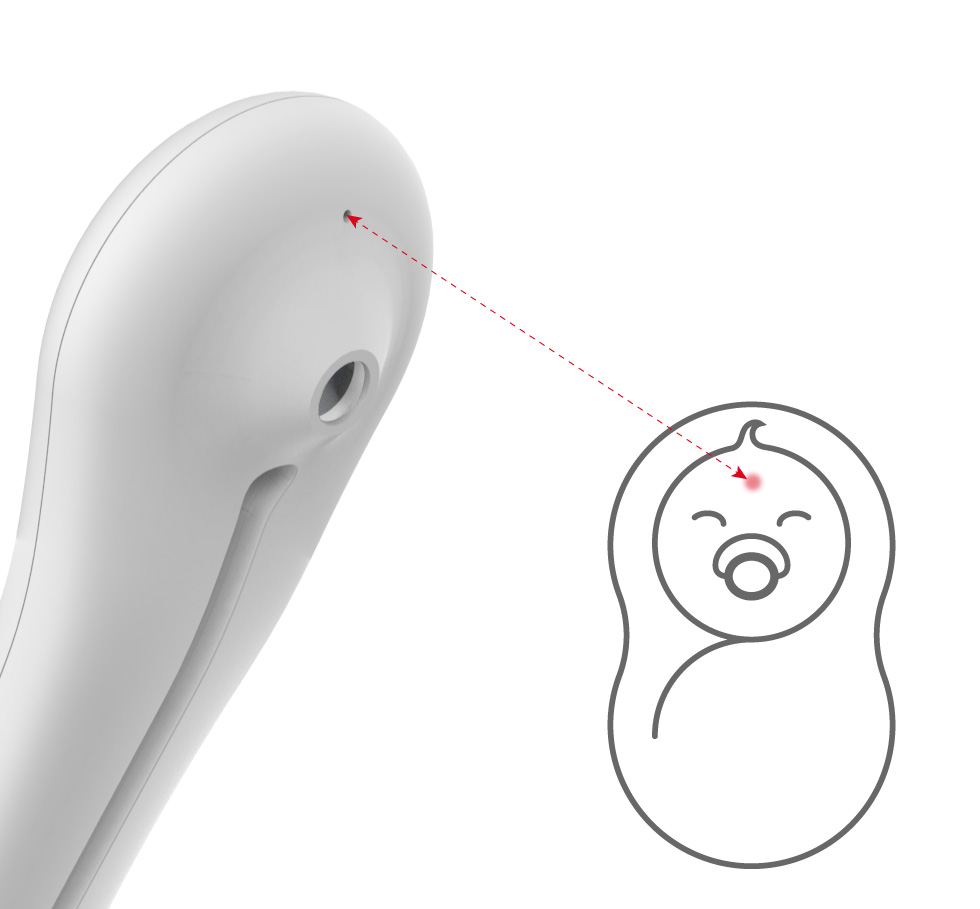

LED guided Distant Measurement
within 5cm
5 cm

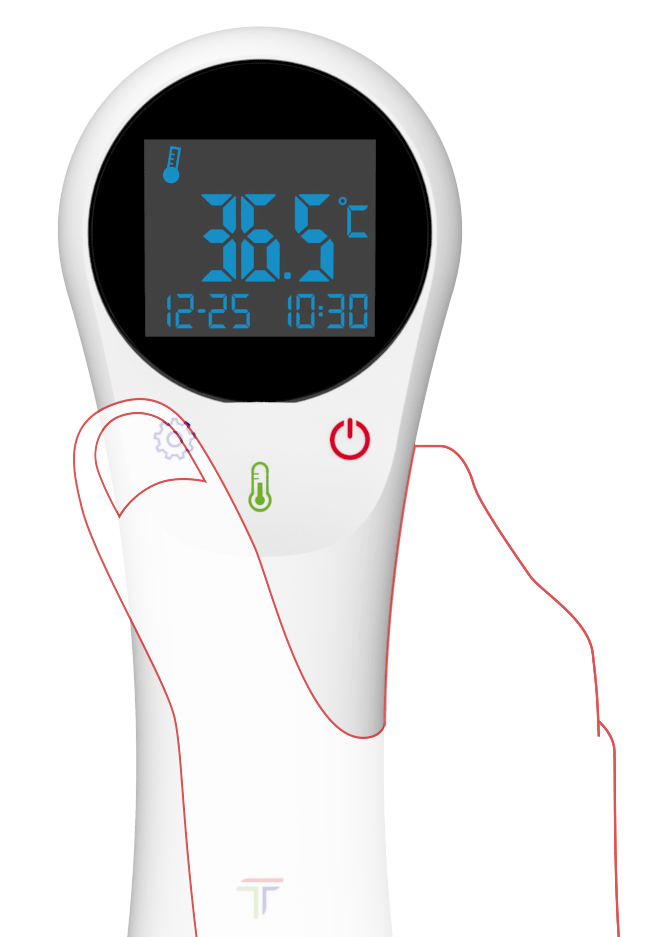

Quick Toggle between
Body and Object Modes

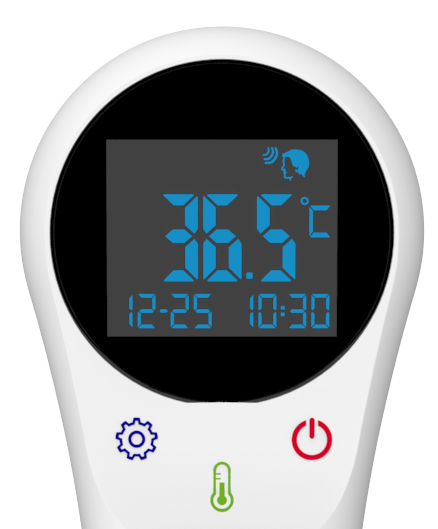

Large, dual-color backlight, and high-contrast LCD display

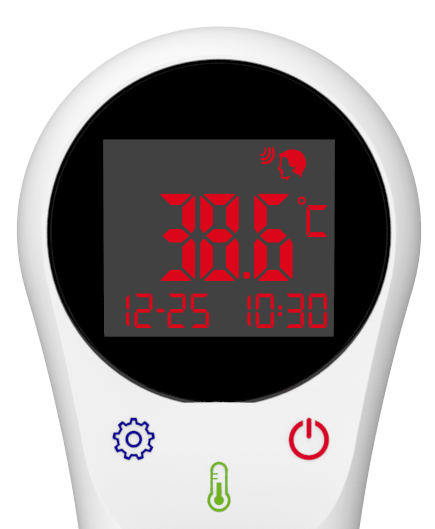

Colored fever alert display
and beeper
Usage Method
Power On
Measuring
Instant Result

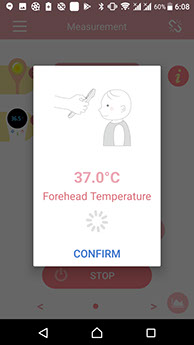

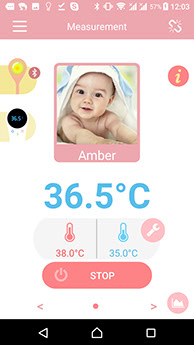

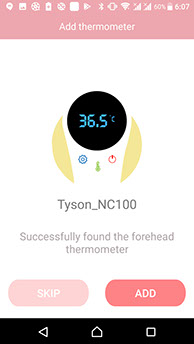

GuardiAngel APP
NC 100 APP Benefits
- Distinguish temperature data among different kids
- Unlimited data memories
- Sharing data with friends and families via secure Cloud
Best Bundle (Optional)
TP100 (optional)
NC100
Continuous monitoring
around the clock
Fast, Reliable, and
Multi-function measurement
+
Temperature Monitoring Kit With APP
Integrated Storage
Technical Specifications
Temperature Measuring Range
Measuring Time
Measuring Distance
Operation Button
Resolution
Accuracy
Transmission Interface
Sensor
Indication of Operation
Operating Temperature
Operating Humidity
Operating Atmospheric Pressure
Storage Temperature
Storage Humidity
Power Source
Power Consumption
Auto-Off Time
Material Tangible
Ingress Protection Rating
Dimensions
Weight
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
Body mode: 32.0°C ~ 43.0°C (89.6°F ~ 109.4°F)
Object mode: 0.0°C ~ 100.0°C (32.0°F ~ 212.0°F)
1 second
5 cm
3 touch keys (Power/Setting/Measure) on the housing
0.1°C / 0.2 °F
Body mode
±0.2°C / 0.4°F (32.0 ~ 43.0°C / 89.6 ~ 109.4°F )
Object mode
±1.0°C / 2.0°F (0.0 ~ 100.0°C / 32.0 ~ 212.0°F )
BLE single mode, SIG Standard, SPI, I2C, GPIO, OTA
Thermopile sensor
Visual (Blue / Red LED) and audible (beeper)
Body mode: 10 ~ 40°C (50.0 ~ 104.0°F)
Object mode: 10 ~ 40°C (50.0 ~ 104.0°F)
≤ 80% RH non-condensing
86 ~ 106 kPa
-25 ~ 55°C / -13.0 ~ 131.0°F
≤ 95% RH non-condensing
LR03 (AAA, alkaline) x 2
Measuring 67 mA
Standby 60 mA
Off current 20 μA
60 +/- 5sec.
ABS, PMMA, Silicone rubber
IP22
185.1(L) x 58.0(W) x 29.1(H) mm
93 g including batteries
Product Comparison
