Bluetooth Continuous Basal Thermometer
A smart and versatile thermometer
monitoring your basal temperature and reminding your ovulation cycle!
Trendy
Lifestyle Design
Features
+
Continuous Monitoring
+
30 Seconds Single Test
+
Reminder
+
Physical Activity
+
Anti-Allergic &
Bio-Toxic Free
+
Mobile APP
+
Ingress Protection 64
+
Bluetooth 4.0
State-of-the-Art Technology
Under-arm readings less than 30 seconds as a single measurement and continuous monitoring around the clock.
Unique Interlink Design
A soft & flexible sensing probe extension designed to ensure comfortable attachment, steady Bluetooth connection, and to prevent accidental swallowing.
Comprehensive APP
Graphical interpretation of basal temperature and physical activity, analysis of saliva crystallization, reference of potential fertility period, and reminder for morning tests.

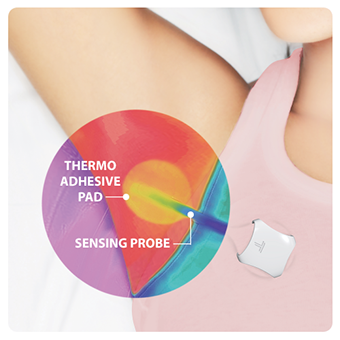

Thermo Adhesive Pad Traps Body Heat to Assure Accurate
Thermo pad of special ingredient minimizes heat loss via convection and conduction, assuring faster and more accurate measurement. Thermal image shows the colder pad keeps the body heat beneath it.

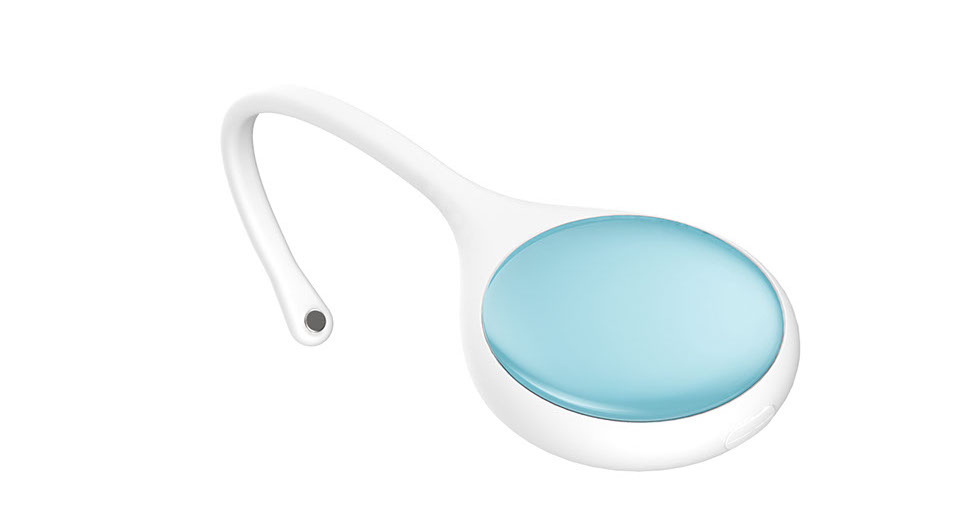

Soft & flexible sensing probe extension design
Stainless SUS 304 Sensing Probe
Comfortable Contact
Food Grade Silicone
Thermo Adhesive Pad
Holder

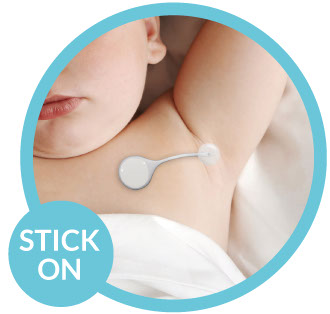

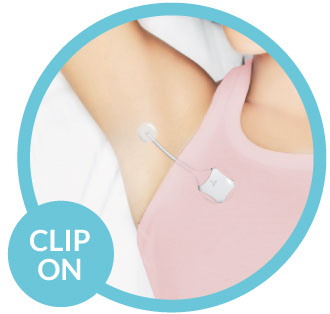

Usage Method
Two Friendly
Methods to
Wear Thermometer

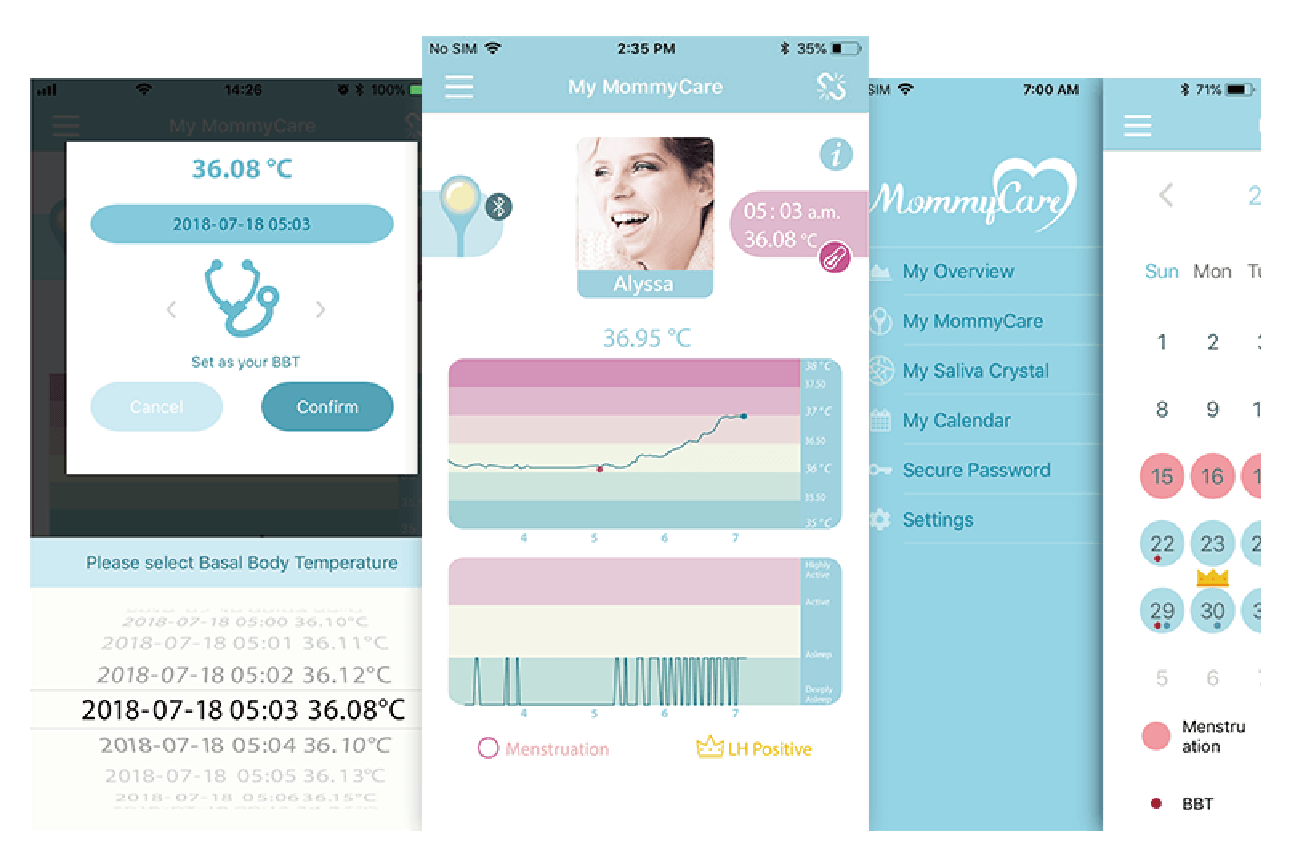

Mommycare APP
Mobile APP capable of remote control via Bluetooth
Automatic Basal Body Temperature (BBT) determination and friendly reminder for measurements

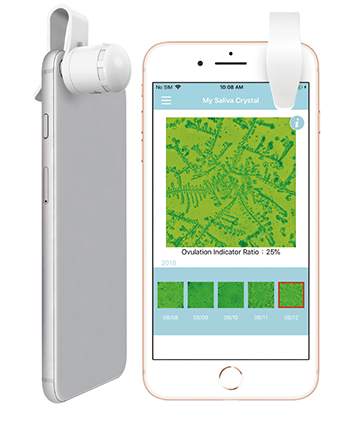

Synchronization of BBT with saliva crystallization analysis to ensure accurate ovulation simulation
Reference of potential fertility period
Wake up reminder for morning tests
Physical activity recording
Over 8 consecutive hours of result storage & chart analysis
iOS & Android mobile phone compatible
Technical Specifications
Temperature Measuring Range
Measuring Methodology
Resolution
Accuracy
Transmission Interface
Sensor
Indication of Operation
Operating Temperature
Operating Humidity
Operating Atmospheric Pressure
Storage Temperature
Storage Humidity
Power Source
Power Up
Power Consumption
Auto-Off Time
Material Tangible
Ingress Protection Rating
Dimensions
Weight
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
｜
32.00 ~ 42.90°C (89.60 ~ 109.22°F)
Single measurement - Underarm, <30 seconds, Predictive
Continuous measurement - Underarm
0.01°C / °F
±0.05°C / 0.09°F (35.50 ~ 42.00°C / 95.90°F ~ 107.60°F)
±0.1°C / 0.2°F (32.00 ~ 35.49°C & 42.01 ~ 42.90°C /
89.60 ~ 95.88°F & 107.62°F ~ 109.22°F)
BLE single mode, SIG standard SPI, I2C, GPIO, OTA
Thermistor
Acceleration sensor
Visual, green & red dual-color LED, no beeper
5.0 ~ 40.0°C / 41.0 ~ 104.0°F
15% ~ 95% RH non-condensing
70 ~ 106 kPa
-20 ~ 60°C / -4.0 ~ 140.0°F
15% ~ 95% RH non-condensing
CR2032 Lithium-ion battery x 1
Tact switch on the housing and activated by mobile device
Measuring 1.0mA
Transmission 20mA
Standby 6uA
3 minutes ±10 seconds without activation from mobile device
SUS304, PC, PMMA, PBT, Silicone Rubber (ISO10993 compliance)
IP64
Main 40.0 (dia.) x 11.0 (t.) mm
Probe 5.0 (w.) x 3.5 (t.)mm
Probe tip 7.3(dia.) x 3.5(t.)mm
Total length 145mm
18g ±10%
