TP100

Bluetooth Dual-Mode

Clinical Thermometer

A smart, continuous, and versatile thermometer for body temperature monitoring of your children!

Trendy

Lifestyle Design

Features

Continuous Monitoring

30 Seconds Single Test

Abnormal Temperature Alert

Physical Activity

Anti-Allergic &

Bio-Toxic Free

Synchronization

Ingress Protection 64

Bluetooth 4.0

Mobile APP

State-of-the-Art Technology

Under 30 seconds of a fast single underarm reading and continuous monitoring around the clock.

Unique Interlink Design

A soft & flexible sensing probe extension designed to ensure comfortable attachment, steady Bluetooth connection, and to prevent accidental swallowing.

Comprehensive APP

Graphical interpretation of body temperature, physical activity, abnormal alert, and a proprietary methodology of supplementary forehead reading synchronization.

Proprietary Thermo Adhesive Pad

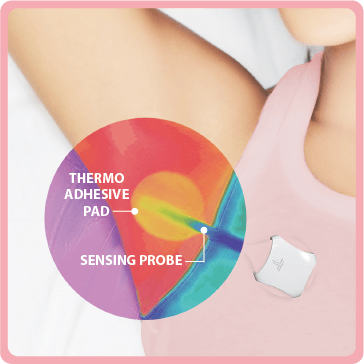

Advance designed composite thermo adhesive pad to minimize heat loss via convection and conduction, assuring faster and more accurate measurement. Thermal image shows the colder pad keeps the body heat beneath it.

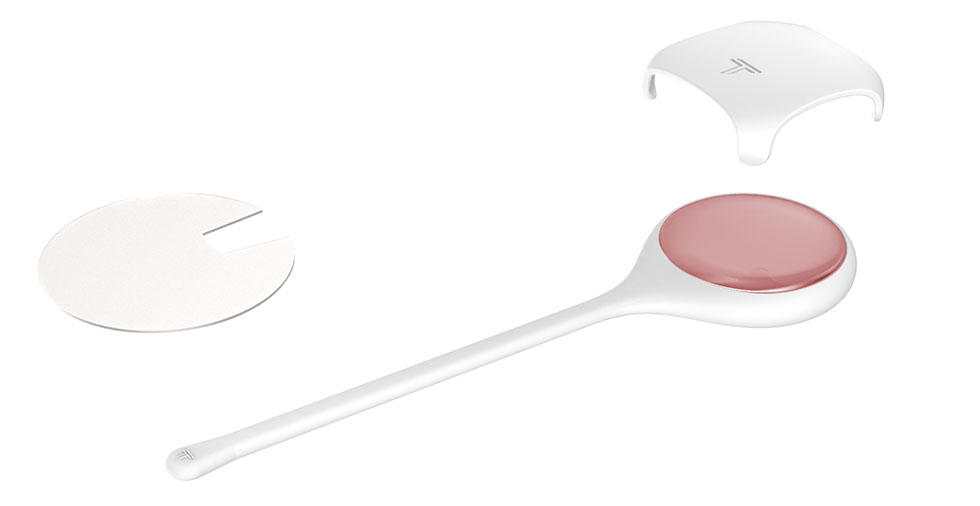

Comfortable Contact

Food Grade Silicone

Thermo Adhesive Pad

Holder

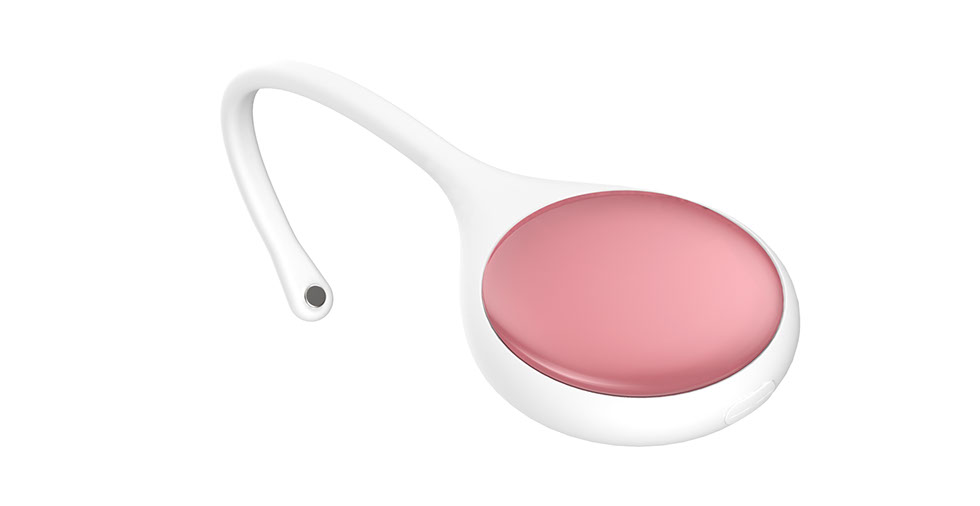

Soft & flexible sensing probe extension design

Stainless SUS 304 Sensing Probe

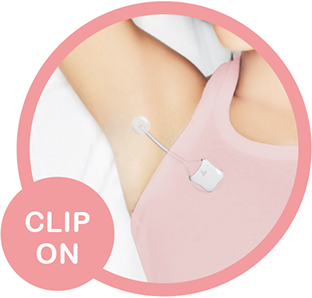

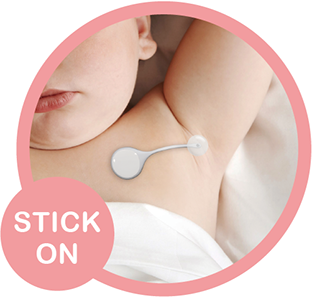

Usage Method

Two Friendly

Methods to

Wear Thermometer

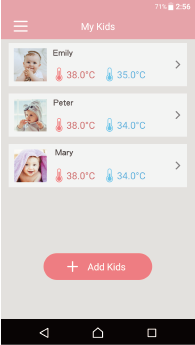

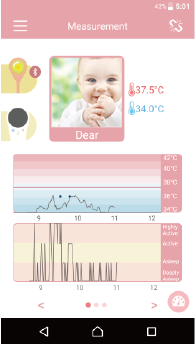

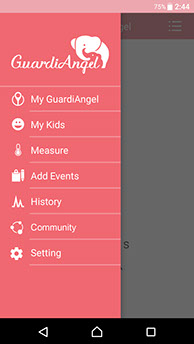

GuardiAngel APP

State-of-the-Art Technology

Under 30 seconds of a fast single underarm reading and continuous monitoring around the clock.

Unique Interlink Design

A soft & flexible sensing probe extension designed to ensure comfortable attachment, steady Bluetooth connection, and to prevent accidental swallowing.

Comprehensive APP

Graphical interpretation of body temperature, physical activity, abnormal alert, and a proprietary methodology of supplementary forehead reading synchronization.

Proprietary Thermo Adhesive Pad

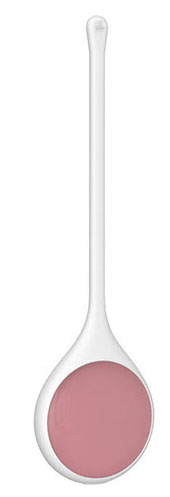

TP100

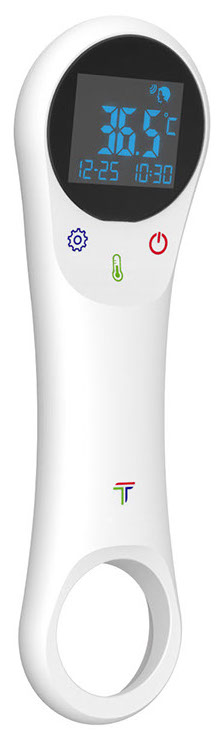

NC100 (optional)

Continuous monitoring

around the clock

Fast, Reliable, and

Multi-function measurement

Temperature Monitoring Kit With APP

Integrated Storage

Technical Specifications

Temperature Measuring Range

Measuring Methodology

Resolution

Accuracy

Transmission Interface

Sensor

Indication of Operation

Operating Temperature

Operating Humidity

Operating Atmospheric Pressure

Storage Temperature

Storage Humidity

Power Source

Power Up

Power Consumption

Auto-Off Time

Material Tangible

Ingress Protection Rating

Dimensions

Weight

｜

32.00 ~ 42.90°C (89.60 ~ 109.22°F)

Single measurement - Underarm, <30 seconds, Predictive

Continuous measurement - Underarm

0.01°C / °F

±0.05°C / 0.09°F (35.50 ~ 42.00°C / 95.90°F ~ 107.60°F)

±0.1°C / 0.2°F (32.00 ~ 35.49°C & 42.01 ~ 42.90°C /

89.60 ~ 95.88°F & 107.62°F ~ 109.22°F)

BLE single mode, SIG standard SPI, I2C, GPIO, OTA

Thermistor

Acceleration sensor

Visual, green & red dual-color LED, no beeper

5.0 ~ 40.0°C / 41.0 ~ 104.0°F

15% ~ 95% RH non-condensing

70 ~ 106 kPa

-20 ~ 60°C / -4.0 ~ 140.0°F

15% ~ 95% RH non-condensing

CR2032 Lithium-ion battery x 1

Tact switch on the housing and activated by mobile device

Measuring 1.0mA

Transmission 20mA

Standby 6uA

3 minutes ±10 seconds without activation from mobile device

SUS304, PC, PMMA, PBT, Silicone Rubber (ISO10993 compliance)

IP64

Main 40.0 (dia.) x 11.0 (t.) mm

Sensing Probe 7.0 (dia.) x 4.0 (t.)mm

Total length 143.5mm

18g ±10%
